Telecommunication Monopole Hot Dip Galvanized Steel Tower

Brand Name : GUANGXIN

Model Number : GX-1518

Certification : ISO9001

Place of Origin : Guangzhou, China

MOQ : 1 set

Price : USD1880-19990 per set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 20-30 days

Packaging Details : plastic bubble sheets

Name : Telecommunication Monopole Hot-dip Galvanized Steel Tower

Material : Certificate Q235B or Q345B

Steel Structure : Single Steel Pipe

Maximum Production Capacity : 4000 TON per annum

Design Loading : As per requirement and specification by Clients worldwide.

Life Period : More than 25 years, it is according to installing environment

Welding Method : CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)

Packages : Packing with plastic paper or according to client’s requirement

Height : 30-80M

Design Wind Speed : Up to 250 km/h

Contact Now

Telecommunication Monopole Hot-dip Galvanized Steel Tower

Product Features:

1. Single tube towers are consisted of single tube and accessory, and main materials are generally made by steel plate bending.

2. The section of tower is circle or polygon, connected by inside flange, outside flange or plug-in.
3. The ladder and rest platform can be set inside the tower, and communication equipments can also be set there with high safety.
4. According to the customers’ choice, the ladder can be placed inside or outside.
5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.
6. Convenient and safe to install, small area covering, and easy to select site.


Specification of Single Monopole Steel Pipe:

Material Angle steel plates, flat steel plate, bolts and nuts
Steel Type Weldable low carbon structural steel
Steel Grade GB Q235, Q345, BS 4360, ASTM A36 etc.
Yield Strength Fy≥235MPa
Tensile Strength Fu≥400MPa
Elongation σ≥20%
Surface Finish Hot dip galvanization
Galvanized layer T≥65μm
Height 20m to 100m, customized to requests
Design 4 legs self-supporting or free standing lattice tower
Structure 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices.
Supply mode CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down)
Fixing/Fastening Bolts and nuts, connecting plates
Configuration Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc.
Wind Load 0.35-1.0kN/sqm
Lifespan 20-50 years
Warranty 3 years
Applications GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations.

Pole/Monopole

Monopole Tower is a kind of tower that consists of one stem or one pole anchored to the ground. According to its cross-section, Monopole Tower is divided in to two types :

  1. Cilcular-pole is a kind of monopole having a cross section/panel diameter similar from bottom to top.
  2. Tapered-pole is a kind of monopole having a varied cross-section diameter size that when the used diameter is more up will be smaller.

The height of Guyed Tower and Monopole are usually lower than the tower transmitter type of self-supporting tower and designed to derives the lighter load from the kind of transmitter tower self-supporting, so that these two kind of towers will not be able to derives heavy load as the antenna which have dimension and heavy large.

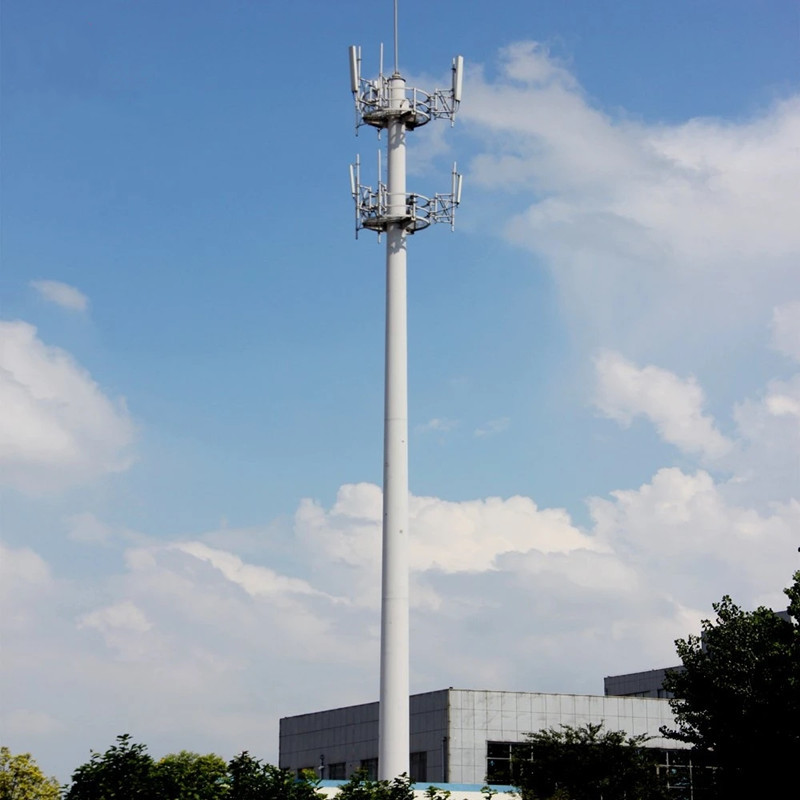

Telecommunication Monopole Hot Dip Galvanized Steel Tower

Single tube tower- Monopole tower

Single tube tower,also called monopole tower, is a commonly used type. It belongs to the field of pipe tower technology, including tower body and working platform on top of the tower. At the bottom and on the working platform of the tower, there is a door opening respectively, antenna support is fixed on the fence of the platform.

Our Advantages
1. Strict quality control system and abundant technical reserves have created world-class products.
2. The factory has completed tens of thousands of project cases so far, so that we have a wealth of technical reserves;
3. Facilitating supports and low labor cost make the product price have great advantages in the world.
4. With a number of patented technologies and a mature drawing and drawing team, you can rest assured of your choice.
5. China Power Grid Certification Level 1 supplier, you can safely choose and cooperate;
6. We are not only manufacturers and suppliers, but also your partners and technical support.
