Brand Name : GUANGXIN
Model Number : STP-123
Certification : ISO9001
Place of Origin : Guangzhou, China
MOQ : 1 set
Price : USD498-8798 per piece
Payment Terms : T/T, L/C, Western Union, MoneyGram
Supply Ability : 1000 sets per month
Delivery Time : 20-30days
Packaging Details : plastic bubble sheets and pearl wool sheets
Name : tubular steel pole
Material : Structural carbon steel
Surface Finish : Hot dip galvanization
Height : 15m to 35m or other customized height
Wind Speed : 35-50m/s
Lifetime : 20-50 years
Warranty : 3 years
Delivery time : 20-30 days
High Mast Galvanized Steel Tubular Pole 35m Self Supporting
High Mast Galvanized Steel Monopole Tower for Landscaping Lighting and Communication
High Mast Landscape Tower, Galvanized Steel Light Pole and Communication Antenna Tower, 15m to 55m high steel Pole
As a professional manufacturer of steel poles and towers, we’re producing all kinds of steel poles for a vast range of applications such as communication macrocell and microcell stations, street/roadway/ highway lighting and traffic signal control and monitor, landscaping etc. In addition, we can also create new designs of steel poles, towers and gantry structures to meet your aesthetic and functional demands.
Conical/tapered Steel Antenna Tower with 2 platforms
Our main products include:
Specifications
Descriptions | Steel poles and towers for mounting communication antennas, microwaves, RRUs etc. |
HS Code | 7308900000 |
Material | Weldable structural carbon steel |
Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
Yield Strength | 235-355MPa |
Height | 5m to 55m or other specified height |
Thickness | 4mm to 20mm, depending on height of pole. |
Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
Design | Single, dual or multiple platforms and brackets |
Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
Galvanization | 65-100 Microns |
Coating | 35-80 Microns (optional) |
Color | Silver, grey, black, white, blue, yellow etc. |
Applications | GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution. |
The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.
Applicable Examples of Steel Tower and Pole
Communication/power transimission or distribution Tower
Roadway/highway/stadium/Street light pole

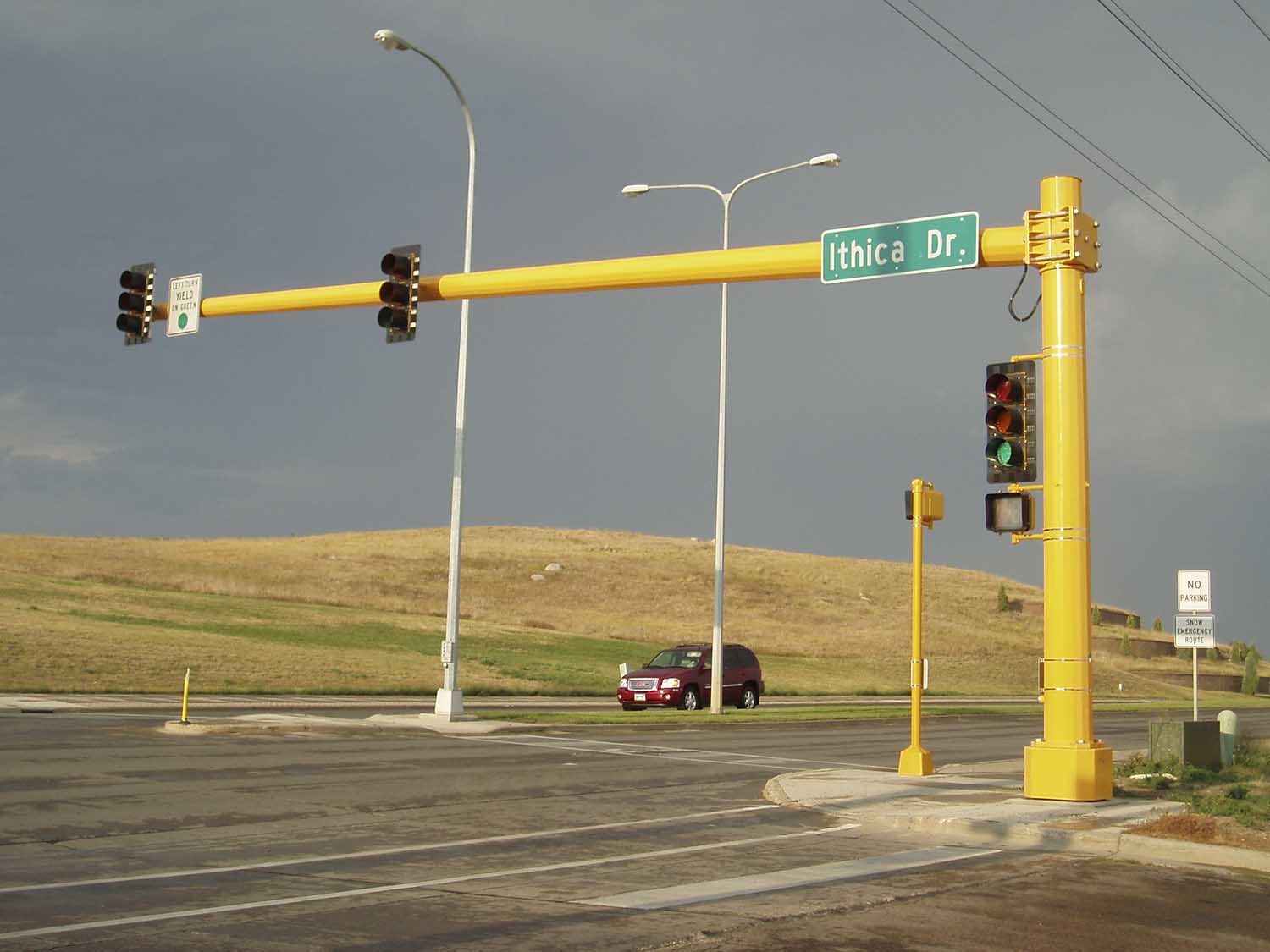

Traffic signal light pole,Traffic CCTV monitor camera and sign pole
![]() |
High Mast Galvanized Steel Tubular Pole 35m Self Supporting Images |
