5G Station Antenna Steel Tubular Pole Q345 High Mast ISO9001 Approved

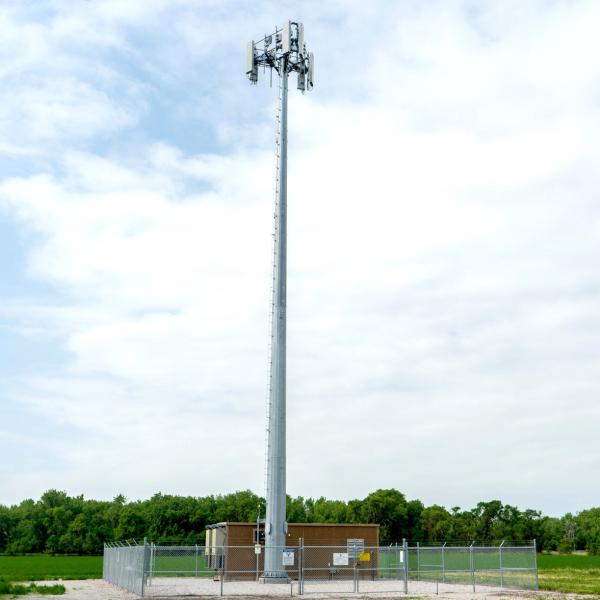

35m High Mast Steel Pole For Communication 5G Station Antenna And Light Tower
All the steel towers are fabricated and delivered according to customer's approved drawings and specifications.
The steel tower is generally composed of foundations, tower body, rest and work platforms, antenna mountning brackets, ladder, lightning rod and earthing leads.
- Steel tower: 3 legs and 4 legs lattice tower (self-supporting tower or guyed wire tower)
- Steel pole: street light pole, high mast light tower, communication antenna monopole tower, landscape antenna/light tower
- Artificial tree/plant camouflaged cell tower.
- Steel structure for traffic or signage billboard gantry and pole.
- Structural steel frame for factory workshops or other steel works.
Specifications
| Descriptions | Steel poles and towers for mounting communication antennas, microwaves, RRUs etc. |
| HS Code | 7308900000 |
| Material | Weldable structural carbon steel |
| Grade | GB Q235, Q345, BS4360, ASTM A36 etc. |
| Yield Strength | 235-355MPa |
| Height | 5m to 55m or other specified height |
| Thickness | 4mm to 20mm, depending on height of pole. |
| Pole Shape | Conical/tapered, straight round/cylindrical, square or rectangular, polygonal etc. |
| Diameter or Dimensions | Subject to height of pole and required mechanical properties. |
| Design | Single, dual or multiple platforms and brackets |
| Surface Finish | Hot dip galvanization plus powder or PVDF coating (optional) |
| Galvanization | 65-100 Microns |
| Coating | 35-80 Microns (optional) |
| Color | Silver, grey, black, white, blue, yellow etc. |
| Applications | GSM, radio, 3G/4G/5G microcell, macrocell and other communication purposes or power transmission and distribution. |
The steel high mast poles are designed with platforms or brackets for mounting antennas or other facilities as per requests. The designs of platforms and brackets are also customized to requirements for different connectors of antennas or other facilities. With custom special designs, the steel towers or poles are used for not only telecommunication or power transmission or distribution but also for landscape decorations.
Applicable Examples of Steel Tower and Pole
Tubular and Angular Steel Communication/power transimission or distribution Tower
Street/Roadway/highway/stadium light pole
Traffic signal light pole,Traffic CCTV monitor camera and sign pole
